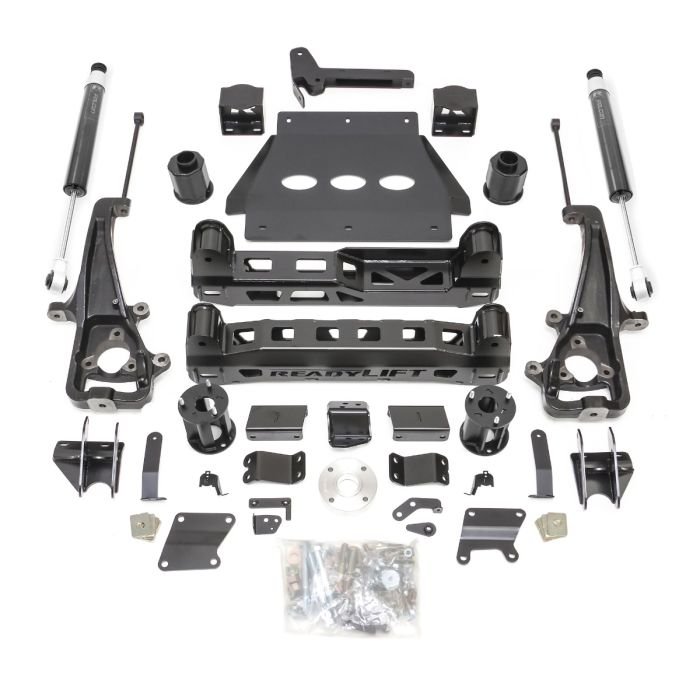

6″ LIFT KIT WITH FALCON SHOCKS – RAM 1500 WITH FACTORY AIR SUSPENSION & 22″ WHEELS WITH BIG BORE KNUCKLE – 2019-2024
6″ lift kit with Big Bore Knuckles for 5th Gen Ram 1500 – 2019-2024 with factory air suspension AND with Factory 22″ Wheels. If your truck came factory with 22″ wheels, this is the kit you need. Includes Falcon 1.1 Mototube rear shocks. Recommended max tire with no trimming: 20×9 0 offset – 37×12.50 tire. *Max with trimming: 20×10 -18 offset – 37×12.50. Cannot use 18″ wheels with this application.Note: Not for use with non-air ride equipped Ram trucks. Not for use with diesel applications. Single Cab configuration has not been validated for fitment & drivability by AutoWheelZone.
About
AutoWheelZone now offers a 6 inch lift kit for 2019-2024 Ram 1500 Air Ride trucks that came factory with 22 inch wheels for the 5th gen is now available. After dedicated development and long-term testing, we are now shipping our Ram 1500 Big Lift Kit for the Ram customer seeking unmatched performance, style and durability. The all-new 44-19623 6″ lift kit is a great option for 5th gen Ram 1500 owners who want a great riding tall stance capable of accepting 37″ tall tires. Our engineers are delighted with the development of this kit and its many great features that make it the best 6″ lift kit on the market! The 44-19623 lift kit includes many great features like rear Falcon 1.1 Mototube shocks and rear control arm brackets which combine to better capture small bump sensitivity and mid-stroke support. Laser-cut heavy-duty steel front cross members and differential drops retain factory geometry while providing proper differential rotation to ensure there is no driveline vibration when in 4WD or Auto-4HI. This all-new Ram 1500 6″ lift kit adopts all the important elements of a premium lift kit to ensure the truck rides and drives remarkably. Rear track bar bracket, Falcon 1.1 Mototube rear shocks, longer rear sway bar end links, heavy-duty cast iron knuckles, and even new thick steel skid plates are just a few of the ingredients contributing to an amazing driving experience on up to 37×12.50 tall tires on 9″ wide wheels with 0 offset. (See tire details below). Note: This kit is for the RAM 1500 that came factory with 22″ wheels with air ride. Kit requires a larger bore knuckle assembly due to larger wheel bearing assembly.
