6″ LIFT KIT WITH FALCON SHOCKS AND FACTORY 22″ WHEELS WITH BIG BORE KNUCKLE – RAM 1500 – 2019-2024
6″ lift kit with Factory 22″ Wheels with Big Bore Knuckle for 5th Gen Ram 1500 – 2019-2024Includes Falcon 1.1 Monotube rear shocks. Recommended max tire with no trimming: 20×9 0 offset – 37×12.50 tire. *Max with trimming: 20×10 -18 offset – 37×12.50. This kit is only for use with trucks that came factory with 22″ wheels. The wheel hub size is different between the 20″ wheel knuckle and the 22″ wheel knuckle. Note: Not for use with factory air ride-equipped Ram trucks or EcoDiesel Motors. Cannot use 18″ wheels with this application. ***Only works on the new body 2019. Does not work on the classic. Single Cab configuration has not been validated for fitment & drivability by AutoWheelZone.
About

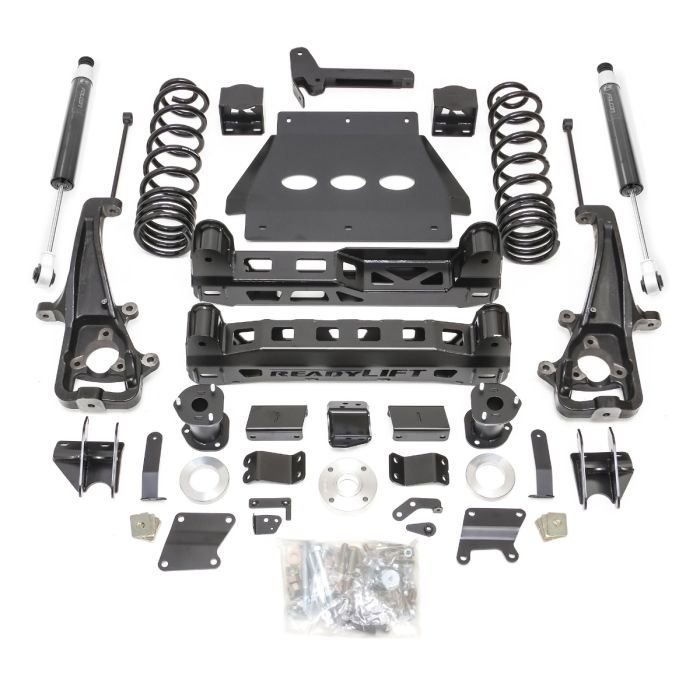

AutoWheelZone offers a 6 inch lift kit for 5th gen 2019-2024 Ram 1500 trucks that came factory with 22 inch wheels! After dedicated development and long-term testing, we are now shipping our Ram 1500 Big Lift Kit for the Ram customer seeking unmatched performance, style and durability. The all-new 44-19610 6″ lift kit is a great option for 5th gen Ram 1500 owners who want a great riding tall stance capable of accepting 37″ tall tires. Our engineers are delighted with the development of this kit and its many great features that make it the best 6″ lift kit on the market! The 44-19610 lift kit includes many great features like rear Falcon 1.1 Mototube shocks, dual-rate rear coil springs and rear control arm brackets which combine to better capture small bump sensitivity and mid-stroke support. Laser-cut heavy-duty steel front cross members and differential drops retain factory geometry while providing proper differential rotation to ensure there is no driveline vibration when in 4WD or Auto-4HI. This all-new Ram 1500 6″ lift kit adopts all the important elements of a premium lift kit to ensure the truck rides and drives remarkably. Rear track bar bracket, Falcon 1.1 Mototube rear shocks, longer rear sway bar end links, heavy-duty cast iron knuckles, and even new thick steel skid plates are just a few of the ingredients contributing to an amazing driving experience on up to 37×12.50 tall tires on 9″ wide wheels with 0 offset. (See tire details below). Note: This kit is for the RAM 1500 with factory 22″ wheels and no air ride. Kit requires a larger bore knuckle assembly due to larger wheel bearing assembly. If installing this kit any Off-Road Group Package equipped truck, AutoWheelZone recommends foregoing the front preload spacer installation – the lifted vehicle will sit about 1/2″ front high with the preload spacer installed or 3/8″ low without the preload spacer. This kit is NOT compatible with (1) adjustable “air ride” suspension equipped models, (2) diesel engine applications, or (3) Ram TRX.
