6.5″ LIFT KIT W/ BILSTEIN SHOCKS – FORD SUPER DUTY F250 DIESEL (ONE-PIECE DRIVE SHAFT ONLY) 2017-2022
2017-2022 F250 F350 4WD 6.5″ Lift Kit System.Diesel Trucks Only Max Tire: 38″. Includes Bilstein 5100 Series Shocks Made In U.S.A. For trucks with one-piece drive shafts. Great lift for a great value! Diesel engines only. Single Cab configuration has not been validated for fitment & drivability by AutoWheelZone.
About

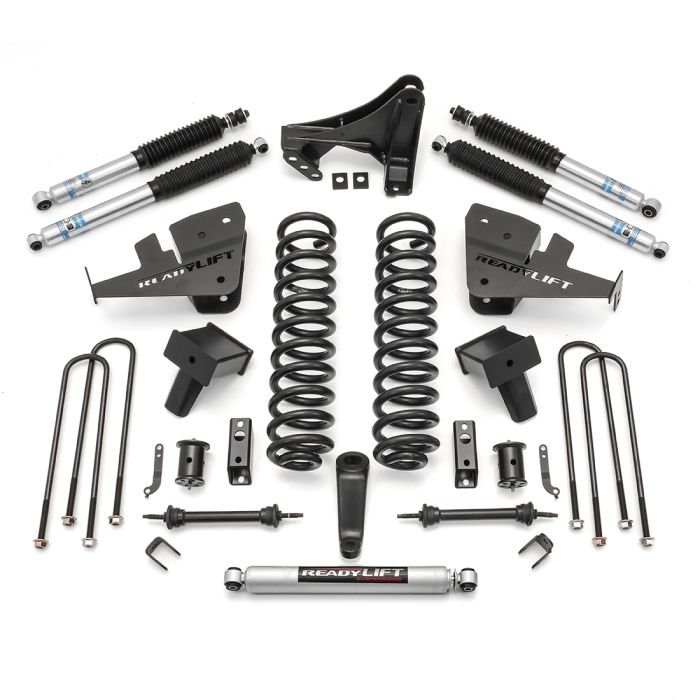

AutoWheelZone offers a 6.5″ Lift Kit system made to fit 2017-2022 F250 Ford Super Duty 4WD trucks with a one-piece drive shaft that includes premium Bilstein 5100 series shocks. This 6.5″ lift kit gives owners an excellent lift kit option that will raise F250 trucks a total of 6.5″ in front. This provides for maximum tire clearance and unbeatable performance. Install up to 38″ tall off road tires with no problems. This new complete lift kit delivers uncompromised ride and handling performance! The 49-2762 6.5″ Lift Kit includes custom wound coil springs engineered to provide an incredibly great ride while also enhancing off-road driving performance. The kit includes radius arm drop brackets that allows you to use your factory radius arms and corrects caster in the process. To lift the rear we include OEM style cast iron rear lift blocks to bring the rear up level with the front while providing a factory-like ride. Other great components to this kit include a drop pitman arm, track bar bracket, sway bar end links, drive shaft spacer, and all hardware is included. NOTE: For use with 1-piece drive shafts only. NOTE:The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs. Use of this type of air bag system will void all block warranties and can cause failure of the block bump stop tang.NOTE: Diesel engines only.NOTE: Kit includes four (4) Bilstein 5100 shocks.Features & Benefits:Maximum wheel and tire size 22 x 12 with +12 offset with 38×13.50″ tire6.5″ of front lift for additional ground clearance and ability to clear up to 38″ tires.Radius arm drop brackets allow you to use your factory radius arms and corrects caster.Custom wound coil springs for maximum off road and on road performance.6.5″ lift rear blocks provides comfortable lift while maintaining a quality ride.Includes extended sway bar end links, bump stop extensions, alignment cams, drop pitman arm and extended brake line brackets.Increased Off Road Ability with An Incredibly Great Ride!
