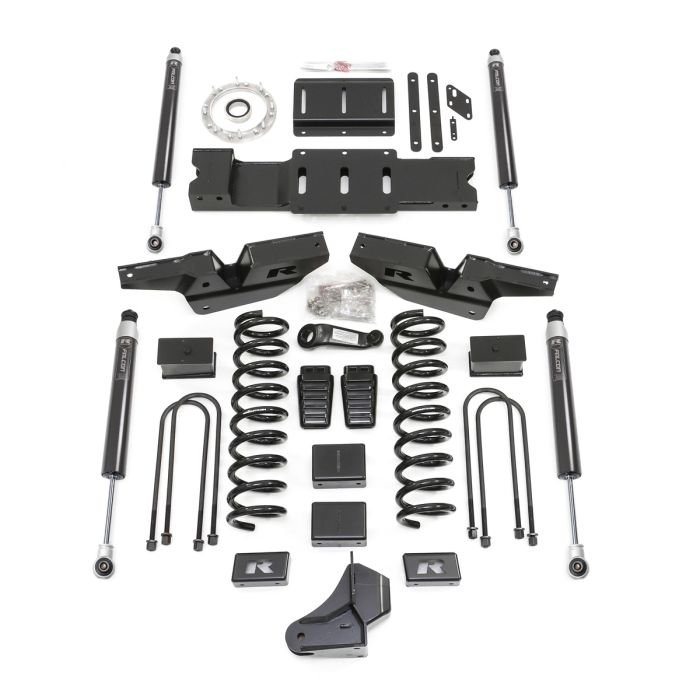

All-new 2019-2024 Ram 3500 4WD HD 6″ lift kit 6″ front with 5″ rear blocks lift kitIncludes all-new transfer case clocking ring and new heavy-duty transmission crossmember.Includes 4 Falcon 1.1 Monotube shocks tuned specifically for the Ram 3500 HD.For use on Diesel engine Ram 3500 4WD HD trucks only.Allows for up to 37×13.50 tires on 20″ x 9″ wide wheels with -18 offset.Note: Does not work with Factory Air suspension, Auto Level system (factory helper bags) HEMI Gasoline engine, dually models, Classic models, and any automatic-leveling rear air suspension models. Single Cab configuration has not been validated for fitment & drivability by AutoWheelZone. Special Note RAM TSB 03-003-23: Symptom/Vehicle Issue: Ratchet Type Click, Clicking Noise Heard In Four Wheel Drive (4WD) While Turning. Download TSB Info. Recommended driveline for the 68RFE Adams Drive Shaft SKU:ASDRAM-1350F-5GEN.
The new RAM HD trucks are more popular than ever and the AutoWheelZone 6″ lift kit for 5th generation Ram 2500 HD trucks are extremely popular. What more could we do for RAM owners? How about engineering a 6″ solution for the RAM 3500 HD trucks? That is exactly what AutoWheelZone has done by adding a new CNC-machined billet Aluminum transfer case clocking ring to improve the driveline angle? Well, that’s exactly what we did for this all-new Ram 3500 application. We designed an application-specific lift kit and included an innovative Driveline Indexing System (DIS) with a transfer case clocking ring, OEM output shaft seal, and adjustable transmission crossmember.Why go to all that trouble to achieve a 6″ Ram 3500 lift? Some Ram HD trucks can experience a slight vibration after lifting due to driveline angle sensitivity. Our new 49-19631 6′ lift kit addresses that inherent (albeit infrequent) driveline system phenomenon with the addition of our DIS “ a heavy-duty transfer case clocking [indexing] ring and new transmission crossmember-positioning the transmission and pinion position for a smooth driving experience on or off-road.Kit 49-19631 includes the new DIS re-positioning components, heavy-duty and great riding 6″ lift front springs, 5″ lift rear taper blocks, heavy-duty radius arm drop brackets, heavy-duty fabricated steel front, and rear track bar brackets, dropped cast iron pitman arm, front/rear sway bar relocation brackets, and bump stop extensions preventing over-compression of the new Falcon 1.1 Mototube front/rear shocks.*Kit will not fit any models with the standard output 6.7L diesel motor, HEMI Gasoline engine, dually models, Classic models, and any automatic-leveling rear air suspension models.
Fits 2017-2022 Ford Super Duty Power Stroke 4WD4″ Coil Spring Lift Kit With (4) Monotube Falcon 1.1 Shocks.Eye-catching HD Tubular Radius Arms helps to correct caster angle.Bolt-on lift kit – no structural modifications required.Allows for up to 37″ tall tires on 9″ wide wheels with +18 offset.Diesel trucks with rear single-wheel only. NOTE: Tremor versions will not gain the full 4 inches over stock ride height. Not recommended for 2WD or gas trucks. 2017-2019 ride height may be slightly lower. Single Cab configuration has not been validated for fitment & drivability by AutoWheelZone.
2019-2024 1500 4WD 6″ Lift Kit Maintains the factory ride and handling. Delivers clearance for increased aftermarket tire sizes – up to 35” on 6-inch kit on 9″ wide wheels with 0 offset with no trimming. Top mount strut extensions maintain factory geometry and retain use of the factory strut. 3/16-inch thick steel plate cross members and skid plate. Anti-torsion boxed and gusseted plate steel differential drop brackets. Fabricated steel 5″ rear lift blocks include integrated bump stop landings, offset pin and provides proper pinion angle. Includes premium Falcon 1.1 Monotube Shocks extended length rear shocks. Includes ReadyGuard Powertrain Warranty. Note: Use of Auto 4 Hi feature not recommended. Note: Not for use on Trail Boss, AT4, AT4X, ZR2, Diesel or Denali models. Note: Not compatible with Adaptive Ride Control or Multimatic suspension. Not compatible with rear mono-leaf springs. Click here to learn how to determine if you have rear mono-leaf springs. Not compatible with Super Cruise. Single Cab configuration has not been validated for fitment & drivability by AutoWheelZone.
Fits 2023-2024 Ford Super Duty Power Stroke 4WD.6″ Coil Spring Lift Kit with (4) Monotube Falcon 1.1 Shocks.Radius Arm Drops for correct caster angle in kit.Bolt-on lift kit – no structural modifications required.Allows for up to 37″ tall tires on 9″ wide wheels with +18 offset.Diesel trucks with rear single-wheel only.***Trucks equipped with the “Onboard Scale” option will require the Auto-Leveling Headlight Bracket. PN: 67-23410 – Ford Super Duty Auto-Leveling Headlight 3.5”-6” Lift Bracket KitNOTE: Tremor versions will not gain the full 6 inches over stock ride height. Not recommended for 2WD or gas trucks. Single Cab configuration has not been validated for fitment & drivability by AutoWheelZone. Currently does not have mounting hardware to work with smart hitch and auto headlight adjuster equipped vehicles.
8″ Big Lift KitMade to fit 2020-2023 GM 2500HD/3500HD 4WD and AT4 Models.Complete front/rear off-road suspension system.Includes (4) Falcon 1.1 Monotube Shocks.Allow for up to 38″ tall tires.Uses AutoWheelZone’s Forged Torsion Keys.Made In U.S.A.See Details for Notes on Tow Package Compatibility.Note: Single Cab configuration has not been validated for fitment & drivability by AutoWheelZone.
