2019-2024 RAM 3500 DIESEL 4WD 3” COIL SPRING LIFT KIT
Front Coil Spring 3″ Lift/Leveling SuspensionMax Lift 3 in – Max Tire Diameter 35 in.For 2019-2024 Ram 35004-Corner Falcon 1.1 Monotube ShocksRear BlocksDiesel Motor Ram HD’s only.Note: Not compatible with Power Wagon, rear air, dually wheels or Snow Prep/Ambulance Package. Single Cab configuration has not been validated for fitment & drivability by AutoWheelZone. Dually applications require part number 49-19332.
About

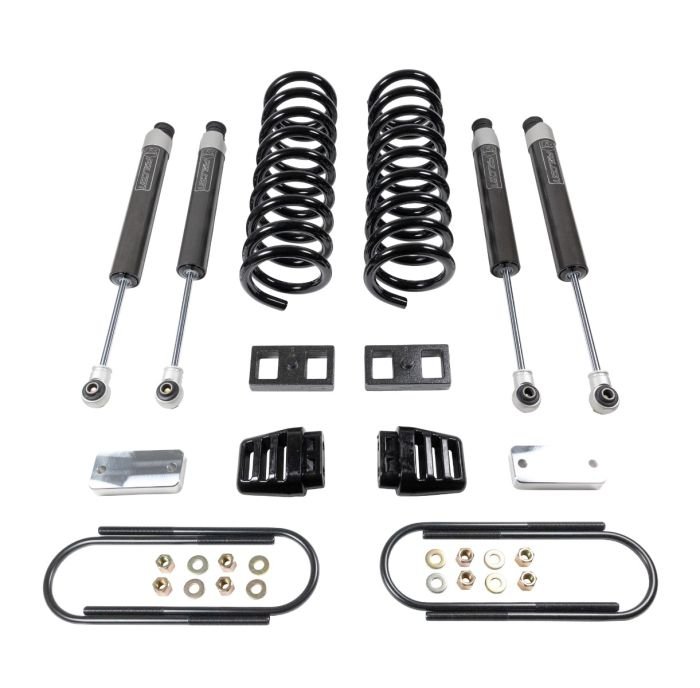

The new Ram HD 3″ Coil Spring Lift Kit is specifically designed for Heavy-Duty applications utilizing AutoWheelZone-engineered new front coil springs and Falcon 1.1 Monotube front & rear shocks. The 3″ kits are equipped with front and rear Falcon shocks, Heavy-Duty front coil springs, and bump stop spacers. The 3500 kit includes rear blocks and U-bolts to achieve a neutral, lifted stance. The 3″ kits allow up to a 35×12.50 tire and 20×9 wheel with a 0 offset. AutoWheelZone’s kit provides plenty of clearance for larger aggressive tires and wheels delivering a muscular, tough look, all while improving the factory ride quality.
